ATX CASE

ASTRAL MAX BLACK

BK-01
BK-02
BK-03
BK-04
BK-05
BK-06
BK-07

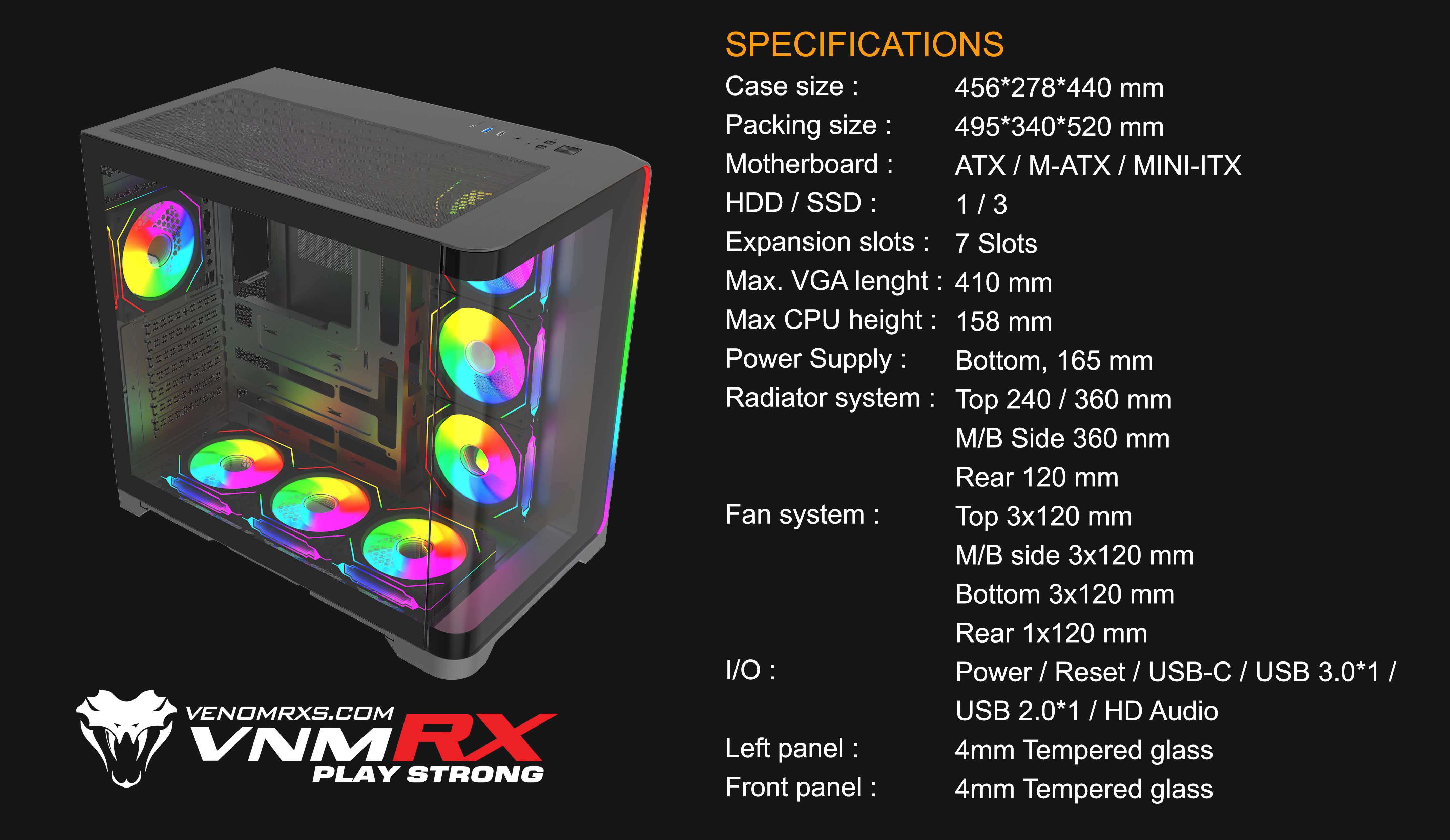

SPECIFICATION
Product dimensionL456mm x W278mm x H440mm
Package dimensionL495mm x W340mm x H520mm
Side window panelTempered Glass
Front window panelTempered Glass
Structure coatingBlack
ColorBlack
Mainboard SizeATX / Micro-ATX / Mini-ITX
PSU ModelATX
Cable ManagementYes
ScrewlessYes
KEY FEATURES

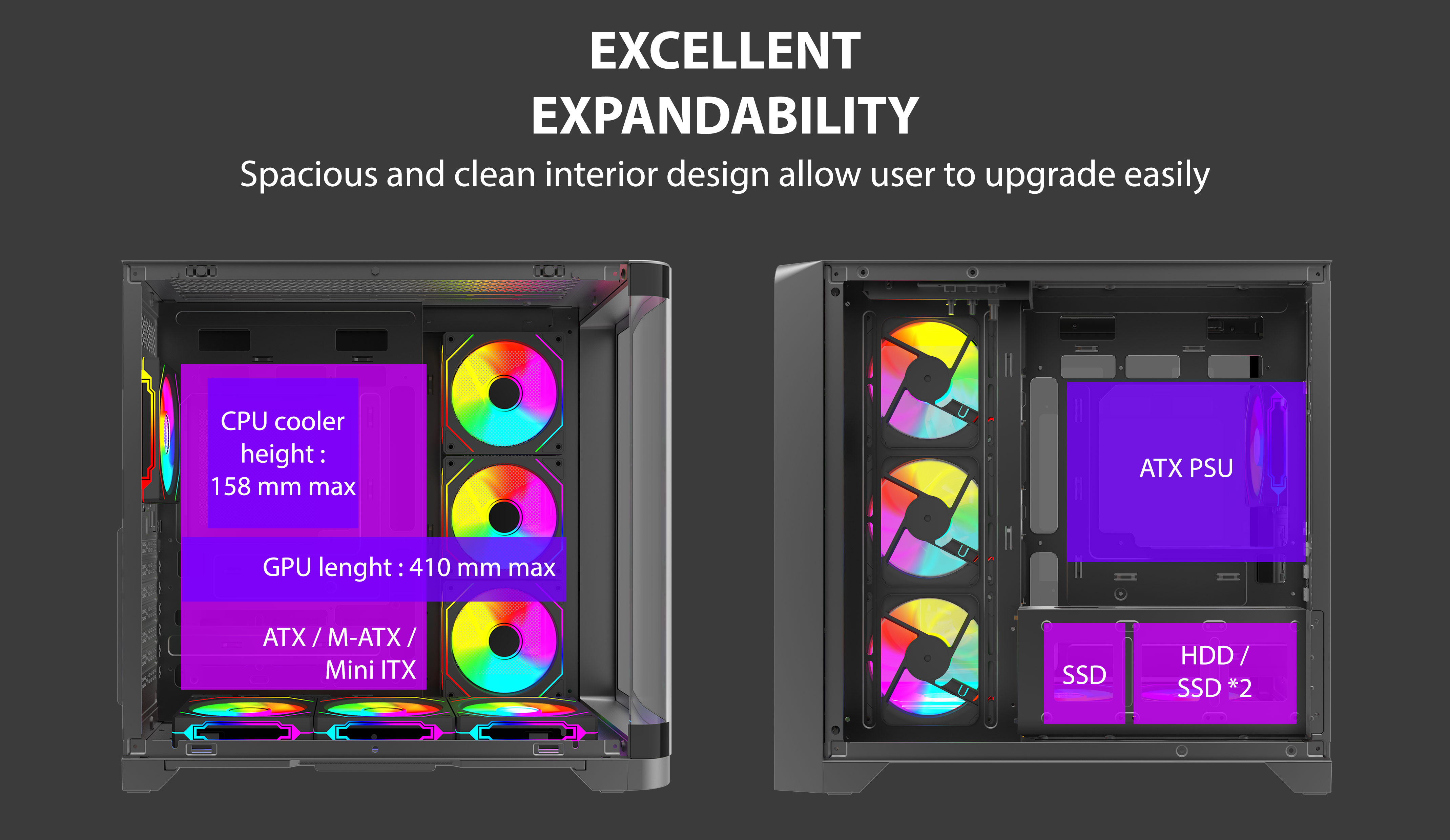

Size : Mid Tower
Power Supply Mounted : Bottom up to 165mm
CPU Cooler Height : Up to 158mm
VGA Card Leght : Up to 410mm
Internal 3.5” Drive Bays : 1
Internal 2.5” Drive Bays : 3
External PCI Slots : 7

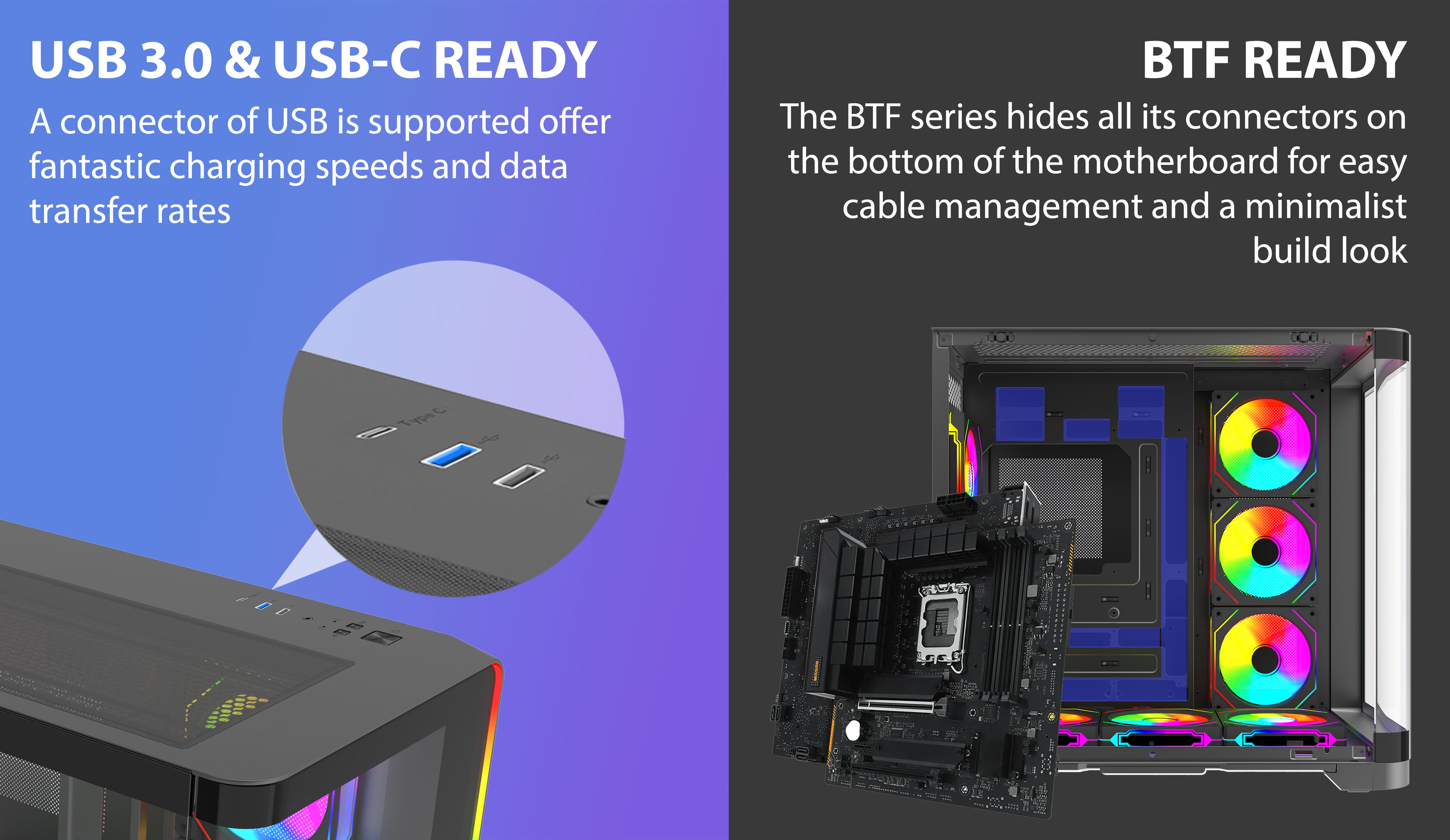

I/O : Power, Reset, USB-Cx1, USB 3.0x1, USB 2.0x1, HD Audiox1
Side Fans : 3x120mm (optional)
Top Fans : 3X120mm (Optional)
Rear Fans : 1x120mm (Optional)
Bottom Fans : 3x120mm (Optional)

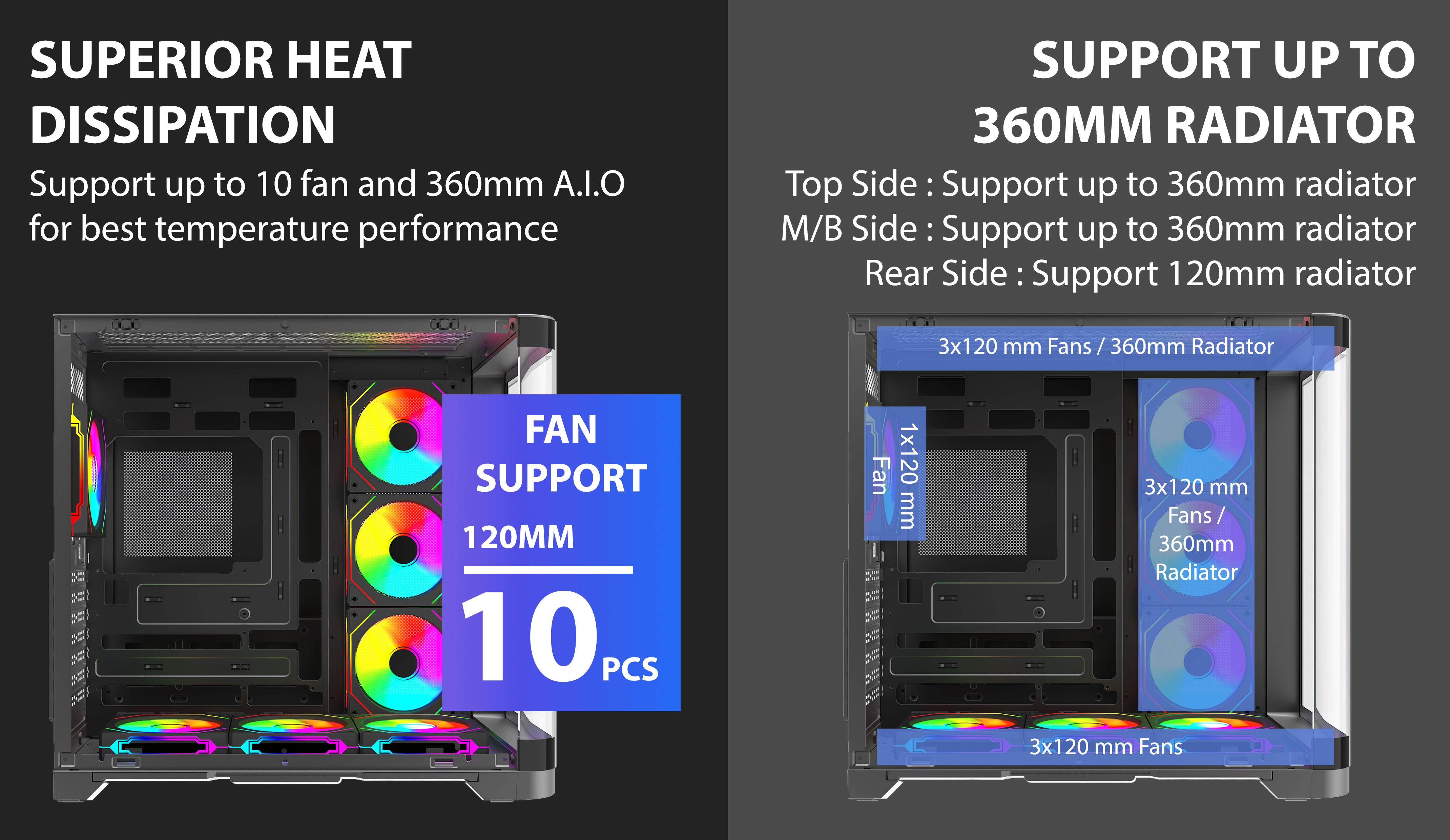

Radiator Supports : Top 360mm Rear 120mm Side 360mm
