M-ATX CASE

NOCTIS PRO WHITE

WH-01
WH-02
WH-03
WH-04
WH-05
WH-06
WH-07

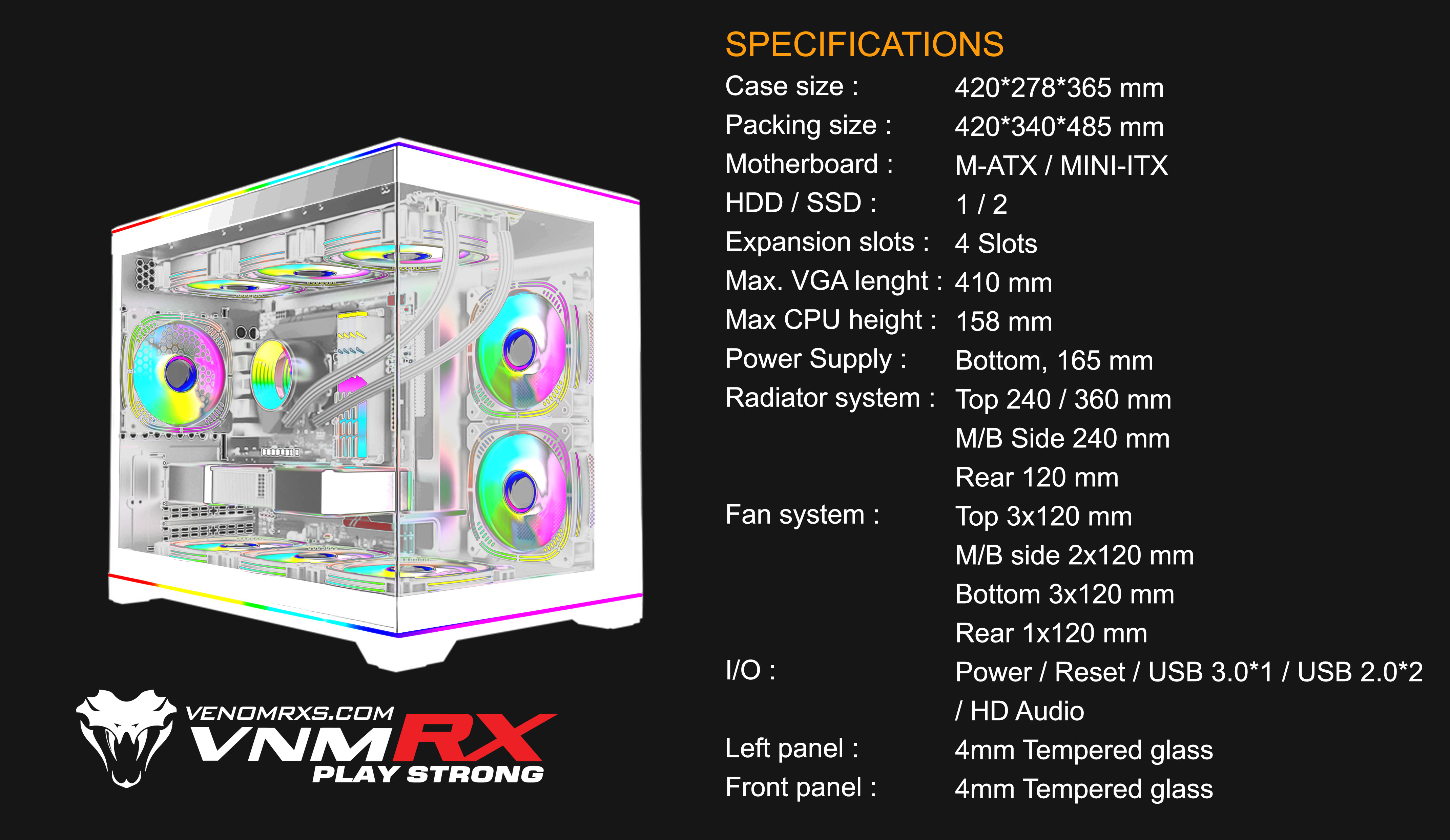

SPECIFICATION
Product dimensionL420mm x W278mm x H365mm
Package dimensionL420mm x W340mm x H485mm

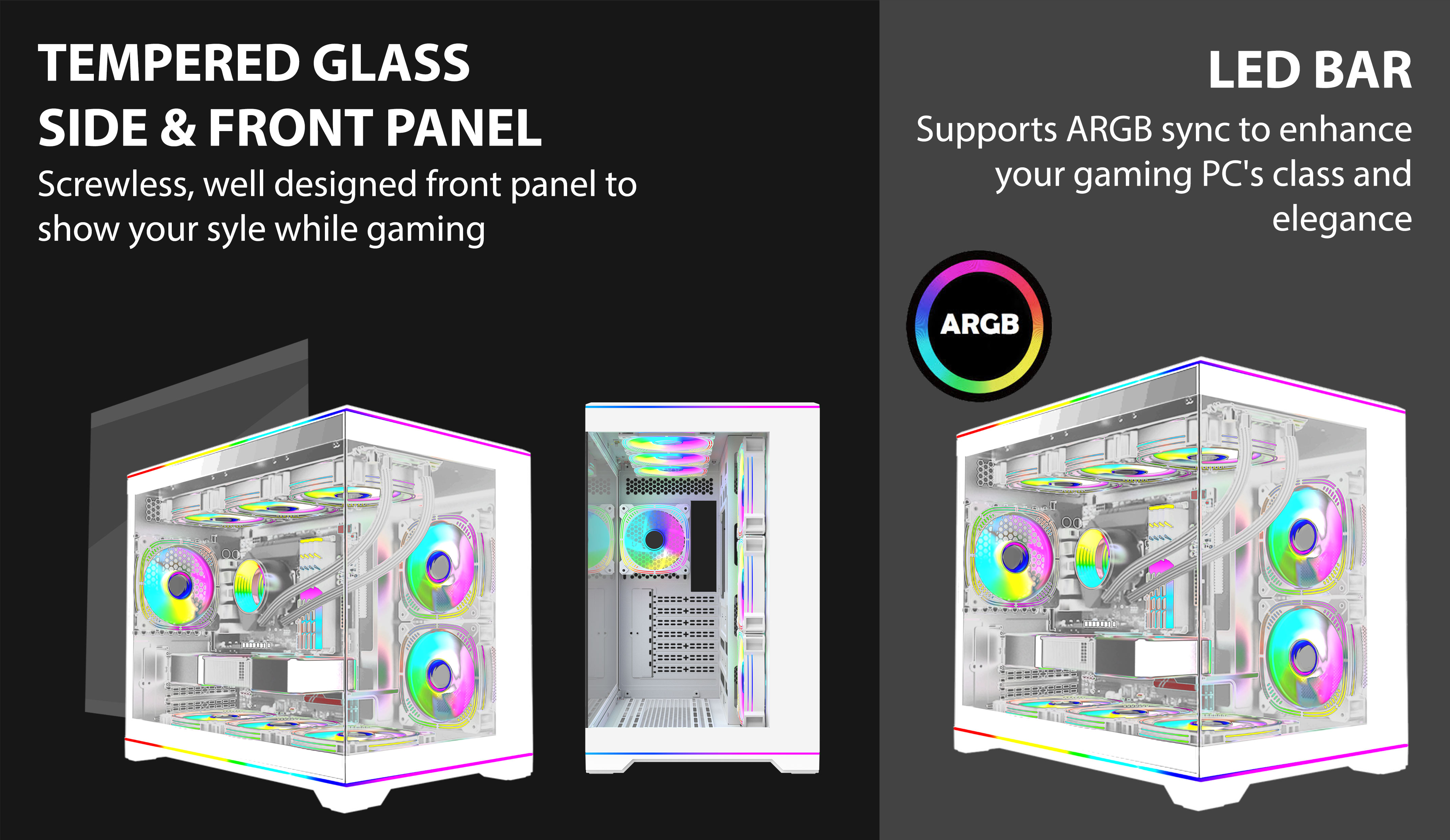

Side window panelTempered Glass
Front window panelTempered Glass
Structure coatingWhite
ColorWhite
Mainboard SizeMicro-ATX / Mini-ITX
PSU ModelATX
Cable ManagementYes
ScrewlessYes
KEY FEATURES
Size : Mid Tower
Power Supply Mounted : Bottom up to 165mm

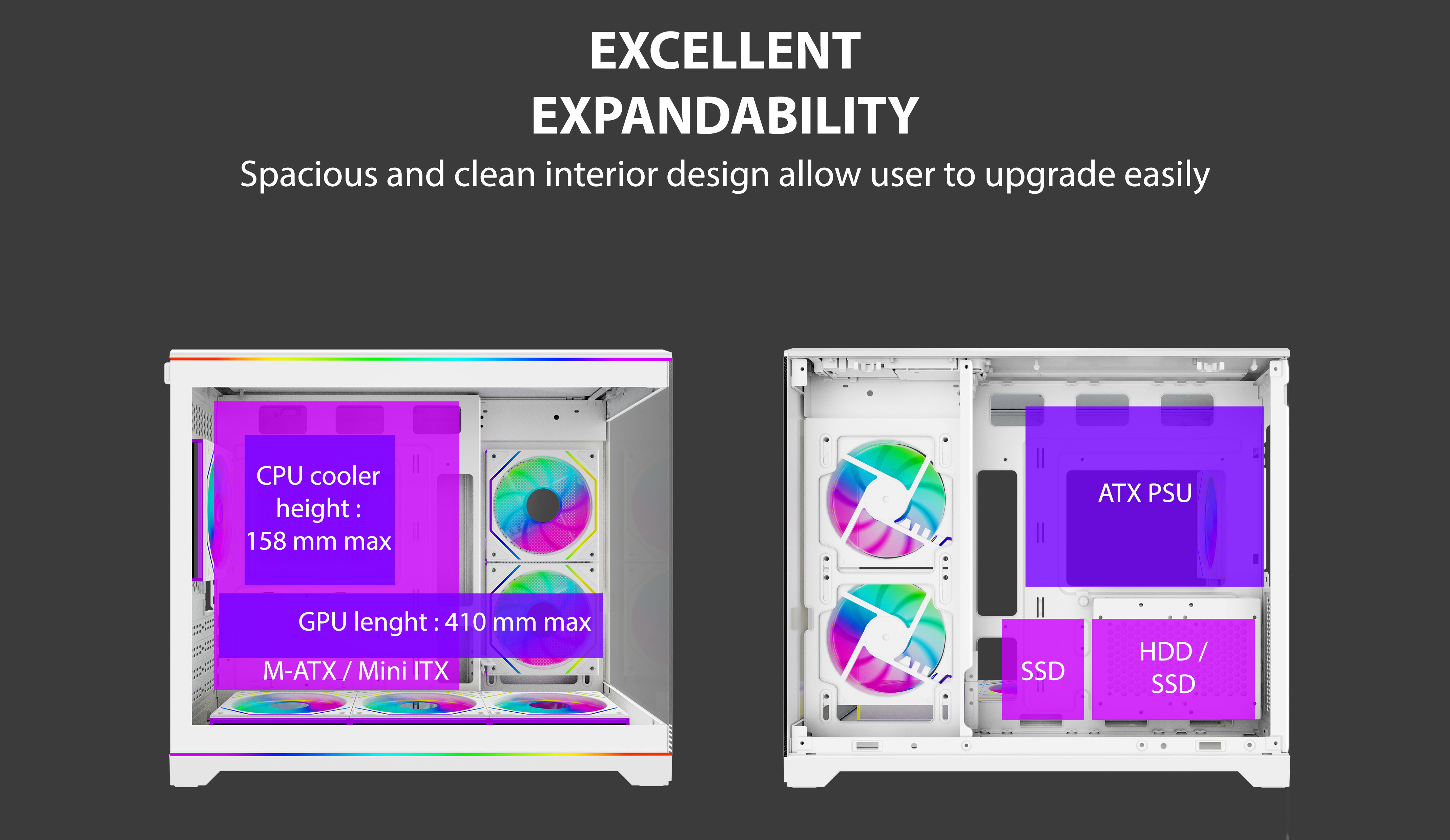

CPU Cooler Height : Up to 158mm
VGA Card Leght : Up to 410mm
Internal 3.5” Drive Bays : 1
Internal 2.5” Drive Bays : 2
External PCI Slots : 4

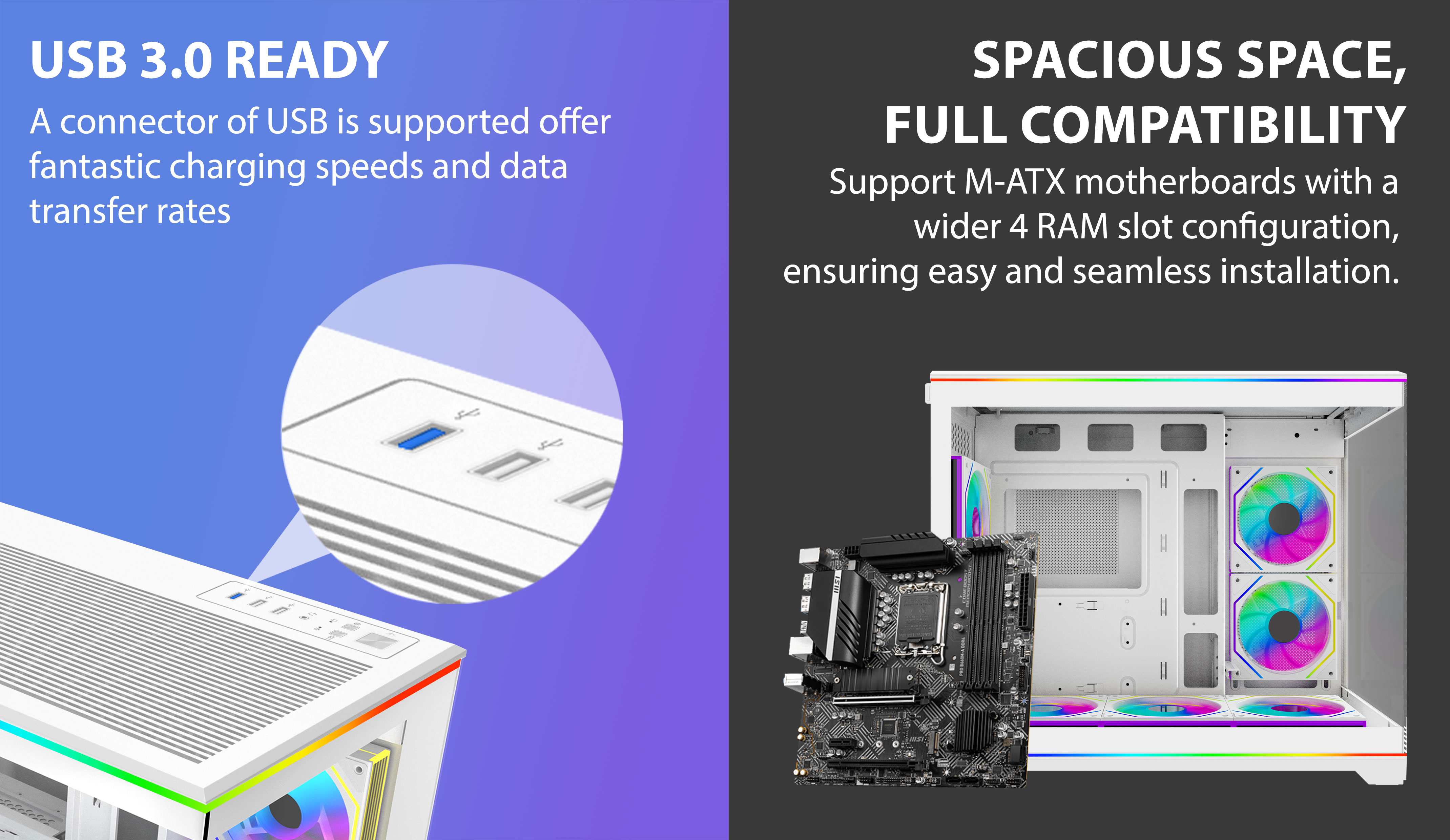

I/O : Power, Reset, USB 3.0x1, USB 2.0x2, HD Audiox1

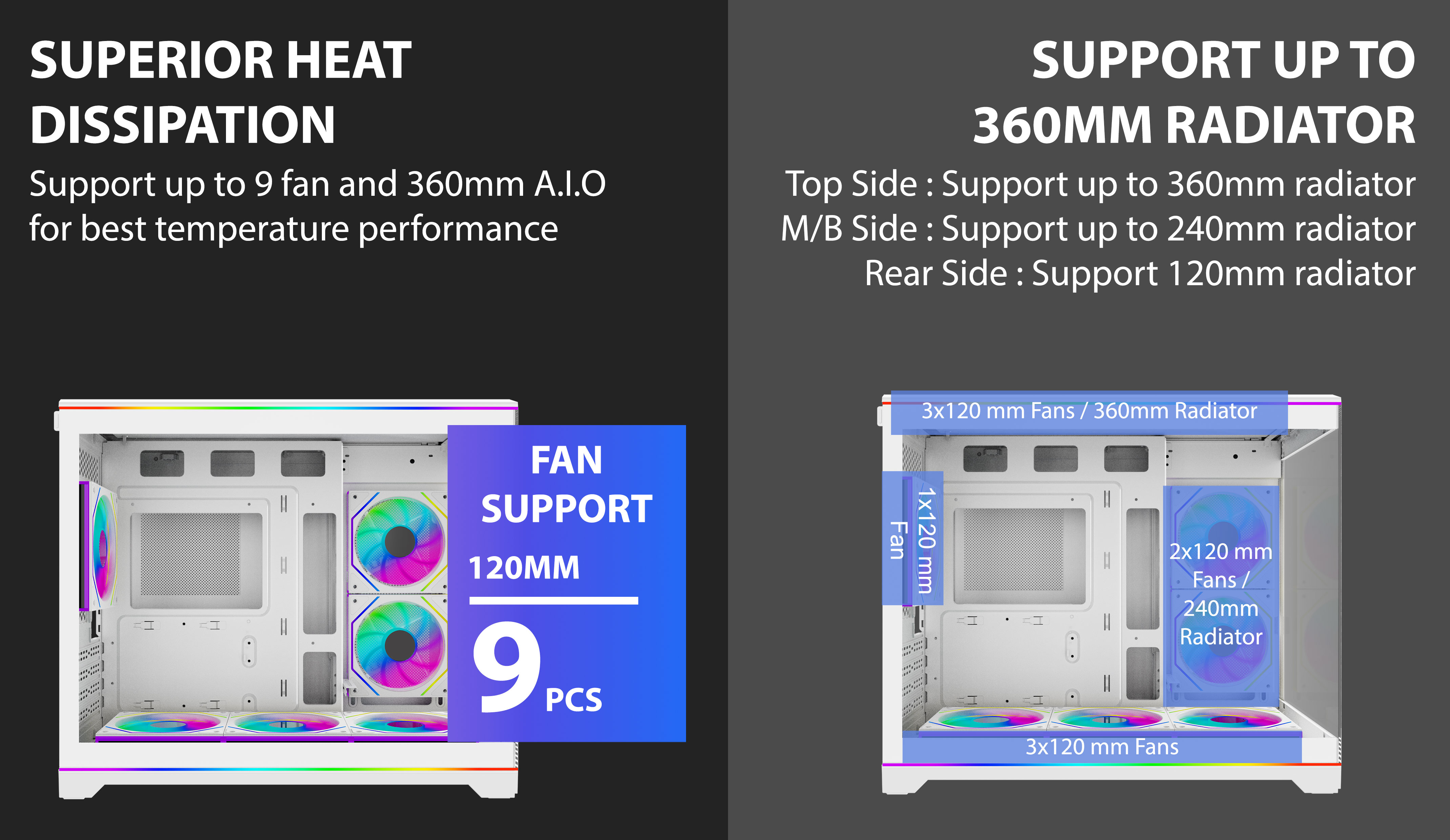

Side Fans : 2x120mm (optional)
Top Fans : 3X120mm (Optional)
Rear Fans : 1x120mm (Optional)
Bottom Fans : 3x120mm (Optional)
Radiator Supports : Top 360mm Rear 120mm Side 240mm
